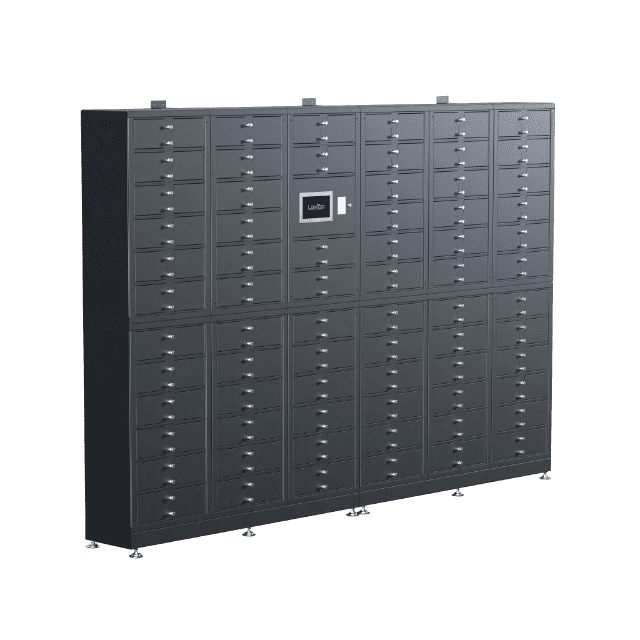

IQ 140 Box Cabinet

The IQ 140 Box Cabinet has 140 individual lockers for the storage of important assets/items. The system can be equipped with different number of boxes and different sizes of box-modules with either one or two doors. Box-modules can be 1, 2, 3 or 4 units tall (79, 179, 279, 379mm). Store and track the valuables or dangerous items via electronic lockers and prevent them from unauthorized access. Access to the boxes is possible by RFID card, PIN codes and Biometric identification. Only those people have access to the contents of the lockers who have permissions to open them. The modular design of the box modules and storage boxes allows for a custom built and variable system.



Description
  • 10 – 140 RFID keyplace and keys
  • Graphics control program
  • Bult-in dual core computer
  • Bult-in touch screen LCD monitor
  • Bult-in proximity card reader
  • TCP/IP ethernet protocoll
  • SSD system drive
  • Backup memory
  • Modular design
  • Made form steel
  • Remote control
  • Integration with other systems

General product description

The key management system or key locker is suitable for tracking the key movements, managing and logging keys of vehicles, offices, banks, government institutions, hotels, hospitals, etc.

The key management system can be standard or customized if required.In case of a customized system when required intelligent storage boxes could be added for your valuables along with the key modules. The modular design of the key cabinet panels and storage boxes allows for a custom built and variable system. The key locker and intelligent storage box system logs and tracks every key movement (key pickup, key return, door opening/closing). With the key locker system you can give permissions to users, manage bookings, key pickups and choose from several other customizable options. The key storage cabinets can be integrated into companies’ ERP and access control systems.

Besides the standard set-up we offer customized modules too. You can order key management systems installed into safes (even into fireproof ones) too.

Software

The IQ key management and storage system software is attractive, easy to use, user-friendly, the interface of the graphic touch screen ensure the users to pick up keys and key returns, and the usage and control of keys.

The thoughtful, ergonomic key management software development allows easy and fast, however transparency operations of the key management system, even for the layman users. For the administrators number of unique, customizable configuration options ensures that the key management cabinet meet with the special and unique application requirements and high expectations. All the services of the key management system are available and can be configured on the graphic interface of the IQ key management software, but for system administrators remote monitoring is also possible through the web based interface. On the visible graphic display the key management system is easy and transparency to use, and manageable.

Security

Emergency & security

The key modules are also equipped with an emergency button. You can pick up your keys in emergency situation by pressing this button, but it works only if you have turned your extra safe emergency key on.Access to the Computer module is also protected by an additional key.In emergency situation external systems (like fire alarm) can give a signal to the cabinet through its inbound ports.In the event of electricity outage the internal backup battery will give service.In our products we use the most advanced micro-electronic devices, equipment and developments which are high-reliability and high-tech equipment, key control systems; we are delivering them to our customers.

Robust
Cabinets are made from steel with powder coat finish.

Safe cabinets

Safe cabinets

  • Minimum number of keys: 10
  • Maximum number of keys: 400

Wall mounted cabinets

  • 10 key cabinet
  • 10 – 50 key cabinet
  • 100 or 200 key cabinet
  • 1 or 2 key blocks with 100 keys each
Modular design

Key cabinets can be expanded with

  • 10-key modules
  • Multi card reader
  • Fingerprint reader
  • Driving licence holder module
  • Box and key modules can be combined within one system

The Embedded industrial touch screen PC is default. Multiply your key capacity by networking several cabinets into one network.

Remote administration

By using the Web-interface you can manage your system from your office. Integrate your cabinets with the Access Control and HR systems.

Specifications

Product Specifications

System

More Info

Cabinet Types

▪ Thin wall Cabinet
▪ Key and Box Cabinet
▪ Storage Cabinet
▪ Safe

Safe certifications

▪ SS3492 (Swedish Standard),
▪ EN 14450 Standard, “S1” qualificationStorage capacity

Cabinet doors

▪ With/without door (right sided, left sided)
▪ Transparent plastic door
▪ Full metal door

Computer module

Industrial PC, Intel Atom E3845 1.91 GHz, Built
in SSD/HDD and external memory for backup,
4 GB DDR3 RAM, 8.9” Touch screen TFT, 2 Ethernet interfaces, RS232, USB, Windows 10
Embedded operating systems



Technical Data

More Info

Power Requirement

230V50Hz / 110V60Hz AC

Internal Battery

7Ah, up to 45 min. operation

Consumption

60W

Operating Temperature

0 – 40°C (32°F – 104°F)

Color of the Cabinet

▪ RAL 9002
▪ YW361F
▪ on demand

Advantages

More Info

▪ Built in a safe for higher security
▪ Built up of modules and later expandable
▪ Easy to install, Plug&Play
▪ 24/7 support
▪ Remote support available
▪ 2 year warranty

Operation

More Info

Number of keys and boxes which the user is
able to pick up or open within one login session
10 keys and/or 10 boxes
Remote management
WEB Interface Available
Network Mode
▪ Cabinets synchronize data with each other
▪ Local and Central database
Communication with External Systems
▪ Interface is available for ERP integration
▪ Based on XML and WEB service
Emergency open
▪ Max. 10 keys in one time
▪ Works using emergency key and button
▪ Enable emergency from external input

Security

More Info

Card reader
▪ USB or RS232
▪ Mifare 13.56 MHz
▪ EM 125 KHz
Fingerprint reader (optional)
USB or RS232
Key holder
CleverKey (keyholder with RFID-chip
